Description
Specifications

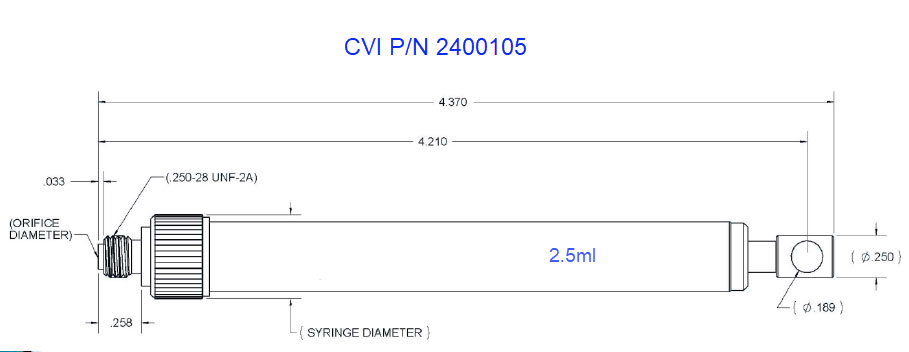

- Physical
- Length: 4.37”
- End Cap: ¼-28 Plunger Button: XL style
- Optimal Internal Pressure 80 PSI
- Environmental
- Storage Temperature: 10℉ to 180℉ ℃
- Operating Temperature: 50℉ to 104℉
- Humidity: up to 100%
- Chemical
- Wetted Materials
- Borosilicate Glass, Kel-F (CTFE), Teflon (PTFE)
- UHMW (optional tip material)
- Lubricated with Medical grade lubricant GE SF96
Performance
Cycle life: PTFE Tip= up to 400K full stroke cycles* UHMW Tip = up to 800k full stroke cycles*
Accuracy/Precision : 1% at 10% of total volume (with Di Water)

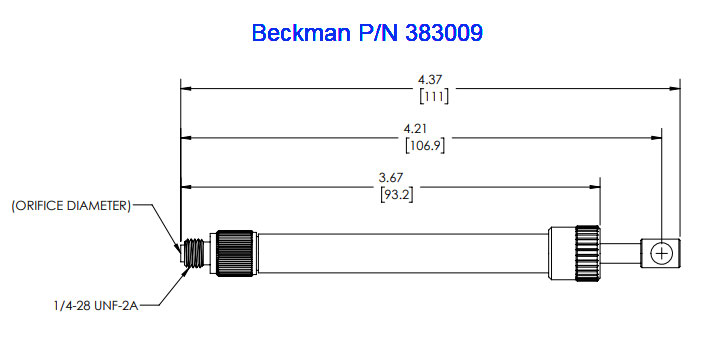

How does it compare? It is an exact replacement…………
